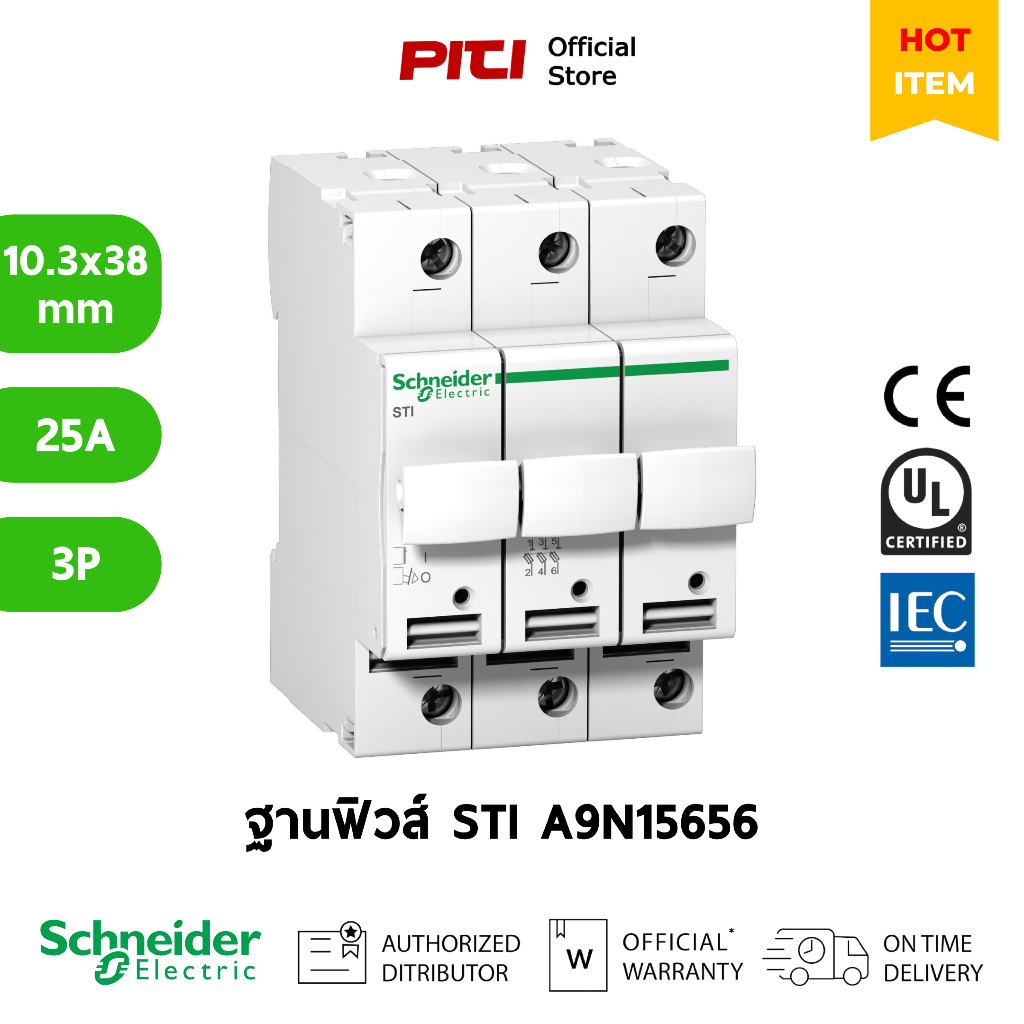

Schneider ฐานฟิวส์ A9N15656 25A 3P 10.3x38mm Acti9 Fuse-Disconnector

Schneider ฐานฟิวส์ A9N15656 25A 3P 10.3x38mm Acti9 Fuse-Disconnector Acti9 - fuse-disconnector STI - 3 poles - 25 A - for fuse 10.3 x 38 mm STI ฟิวส์สวิตซ์ (Isolatable Fuse-Holder) ใช้ป้องกันระบบหรืออุปกรณ์ไฟฟ้าจากกระแสลัดวงจรหรือกระแสเกินพิกัดในงานอุตสาหกรรม This Acti9 STI isolatable fuse-carriers is a low voltage fuse-disconnector. It is used for tertiary and industrial applications requiring a high breaking capacity. It has 3P pole, up to 25A rated current, and gG or aM fuse curve with a fuse cartridge type of 10.3mm x 38mm. it can be mounted on DIN rail for modular installation. The general purpose fuse (gG fuse) provides overload and short-circuit protection. The aM fuse for motor application provides short-circuit protection (protection of loads with a high peak current). it has an IP20 degree of protection on its terminals, becoming IP40 once in modular enclosure. A clip-on marker is visible on front face or on downstream terminal to identify fuse presence. An optional 230V neon indicator light indicates fuse blowing (off in normal operation and lit red after fuse blowing). The device is provided with a captive fuse-carrier and an additional housing for a spare fuse. Its toggle can also be padlocked.
